AEROCK R EC
Water fan heaters with EC motor
Uncompromising Air Barrier
AEROCK SERIES AIR
AEROCK Series AIR is a precisely engineered Plug & Play air curtain,
designed for effective thermal protection in spaces where high performance
must go hand in hand with impeccable aesthetics.
By leveraging advanced technological solutions — highly efficient metal fans, dual-row heat exchangers, and an optimised internal structure ensuring excellent aerodynamic airflow — AEROCK creates an invisible yet exceptionally effective air barrier. It separates the interior from external conditions, ensuring comfort and temperature stability.
Ideal wherever energy efficiency is of paramount importance.
QUALITY THAT WARMS YOU UP
DUAL-ROW
HEAT EXCHANGER
HEAT EXCHANGER
3-YEAR
WARRANTY
WARRANTY
ACOUSTIC
COMFORT
INTELLIGENT AND ADVANCED
MOTION SENSOR
INNOVATIVE
DESIGN
+
+
+
INNOVATIVE DESIGN

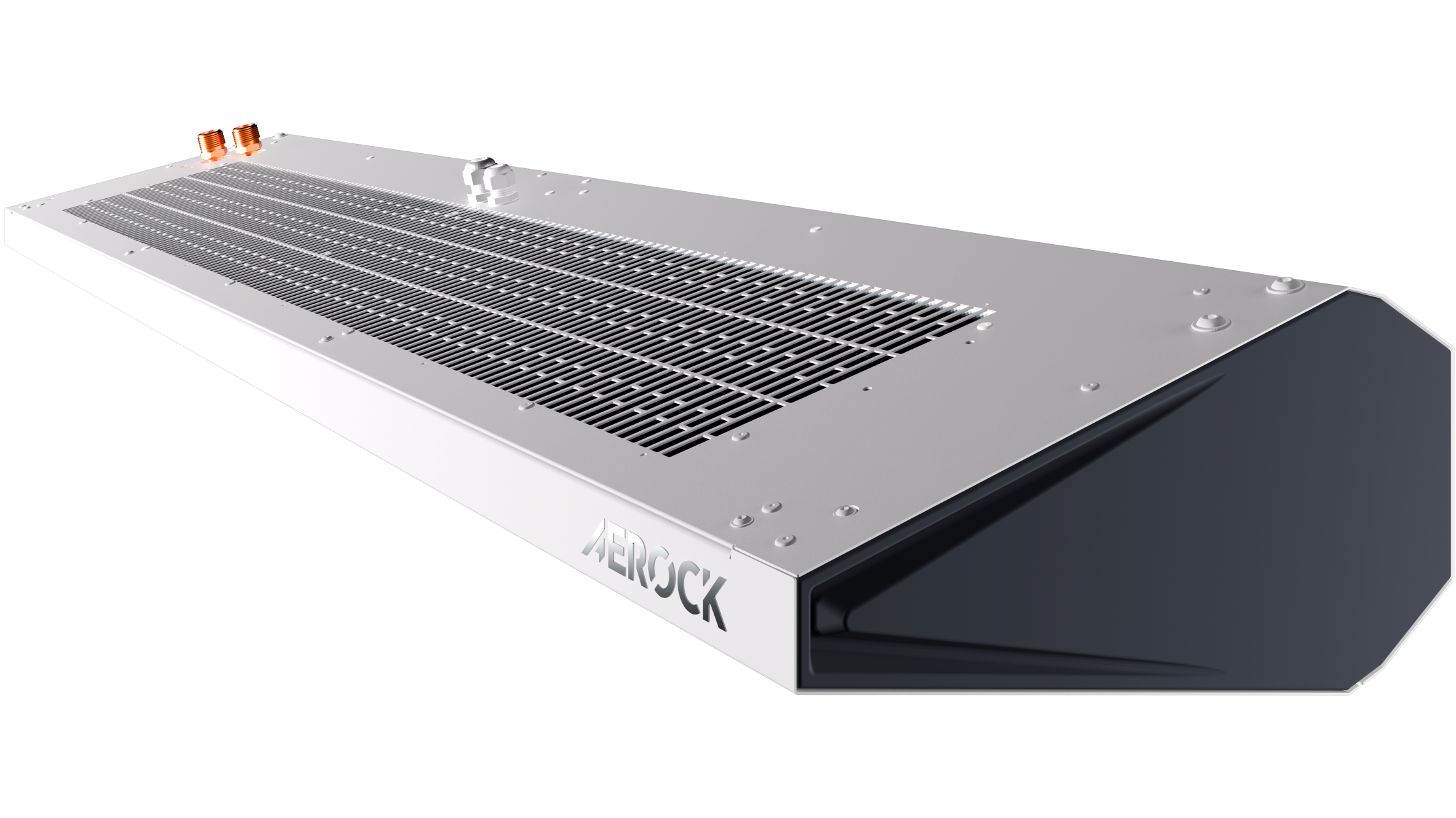

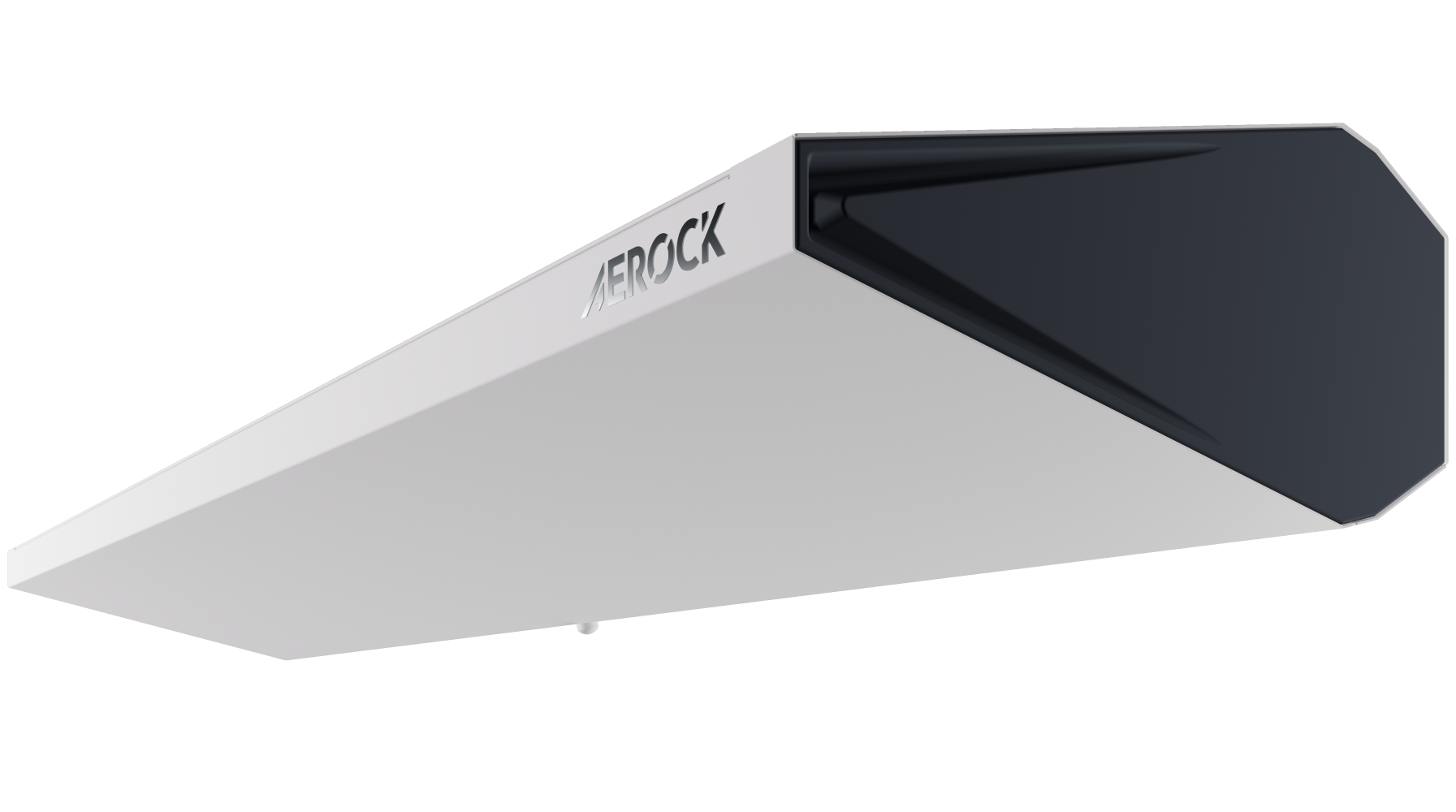

The futuristic form of the device
is a harmonious blend of design and functionality. The refined structure creates
a compact, rigid, and resonance-resistant body that not only guarantees durability, but
also sets new standards in the Premium air curtain segment.
ACOUSTIC COMFORT
Precisely refined fan
aerodynamics combined with top-grade vibration-damping materials result in
exceptionally quiet operation. AEROCK Series AIR remains almost acoustically invisible,
creating a noise-free comfort zone. This is arguably the quietest air curtain on the market.
STABILITY. PRECISION. DURABILITY.
Every unit undergoes
rigorous quality control, including simulations of extreme operating conditions.
You are choosing a solution built to last years, not just one season.
+
+
+
PLUG & PLAY POWER SYSTEM
No more hours of wiring.
The device is designed for immediate operation upon connection to a 230V supply.
The system is ready to run as soon as it is plugged in — no additional controllers
or complex wiring required.

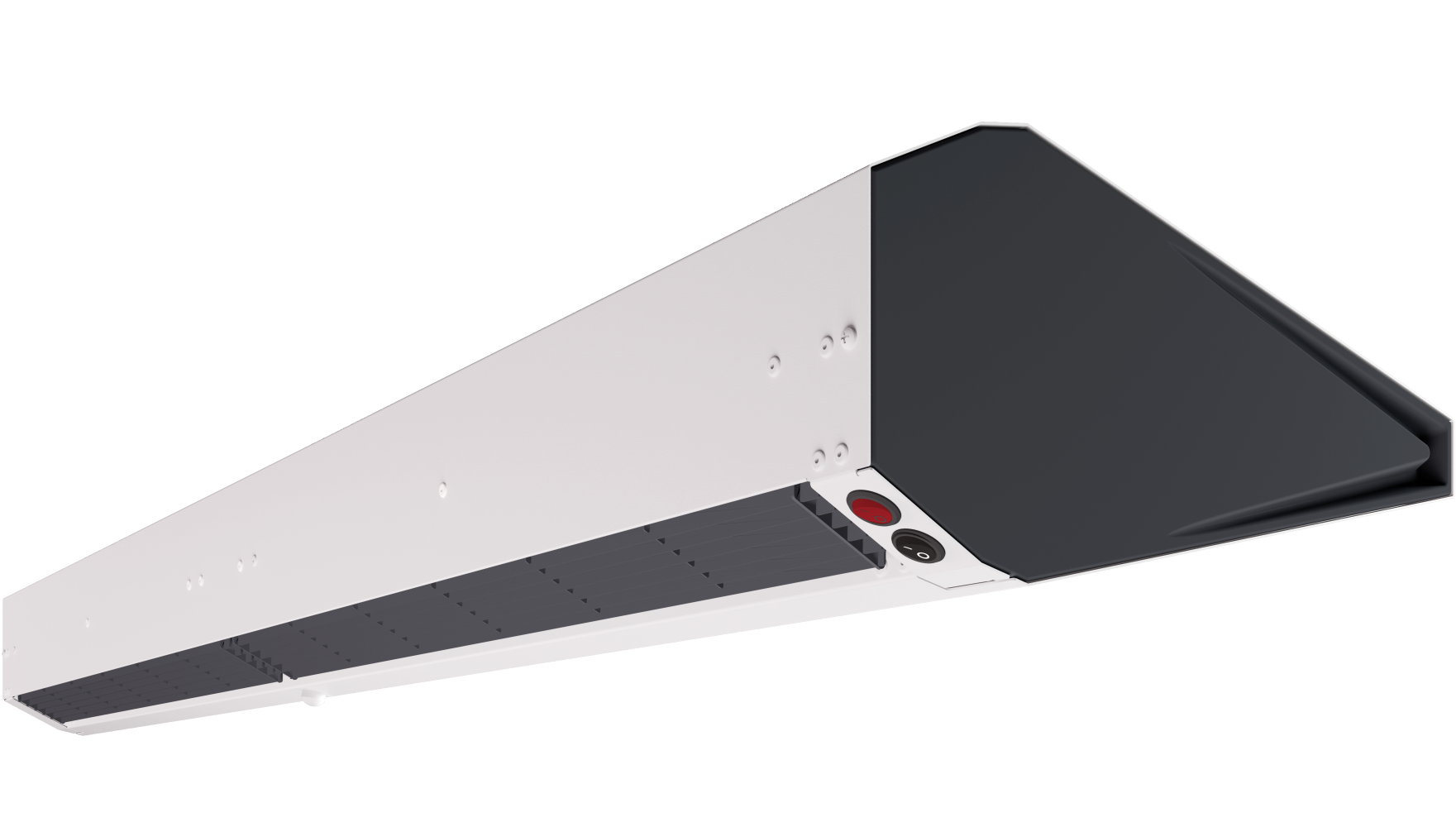

CONTROL PANEL
Instantly manage key
operating parameters: ON/OFF sequence and fan speed selection (airflow power).
Intuitive buttons provide full manual control over the device in any situation.
INTELLIGENT ACTIVATION
The built-in motion sensor
enables automatic detection of activity in the entrance zone. The curtain responds
instantly to the presence of people, optimising operating time and energy consumption.
Full protection activates exactly when needed — providing peace of mind and savings when the space is unoccupied.
Full protection activates exactly when needed — providing peace of mind and savings when the space is unoccupied.
+
+
+
+
METAL IMPELLER
Precisely engineered,
aerodynamic fan blades and a balanced metal construction ensure optimal operating
geometry, resistance to high temperatures and deformation, guaranteeing reliable
operation even in the most demanding duty cycles.

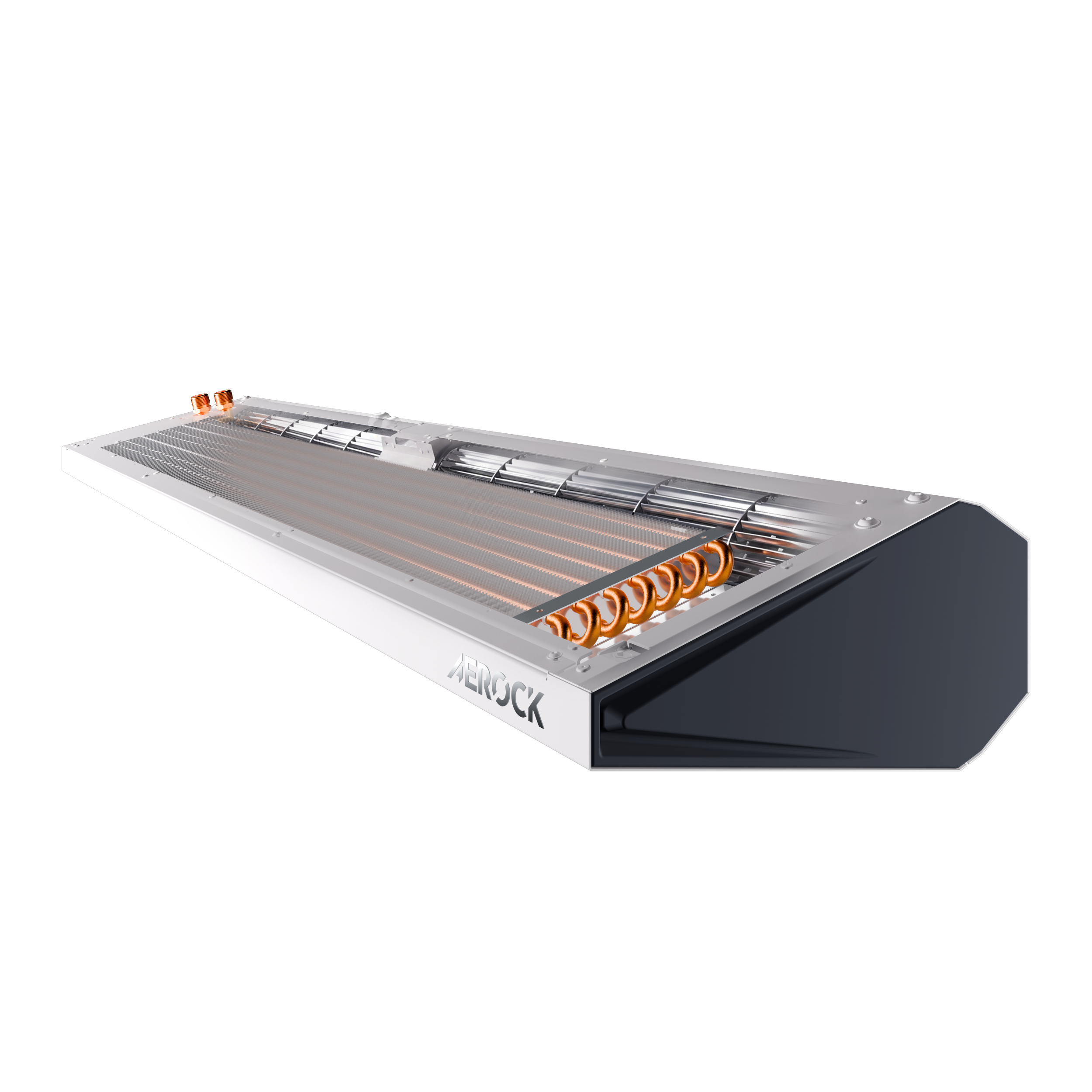

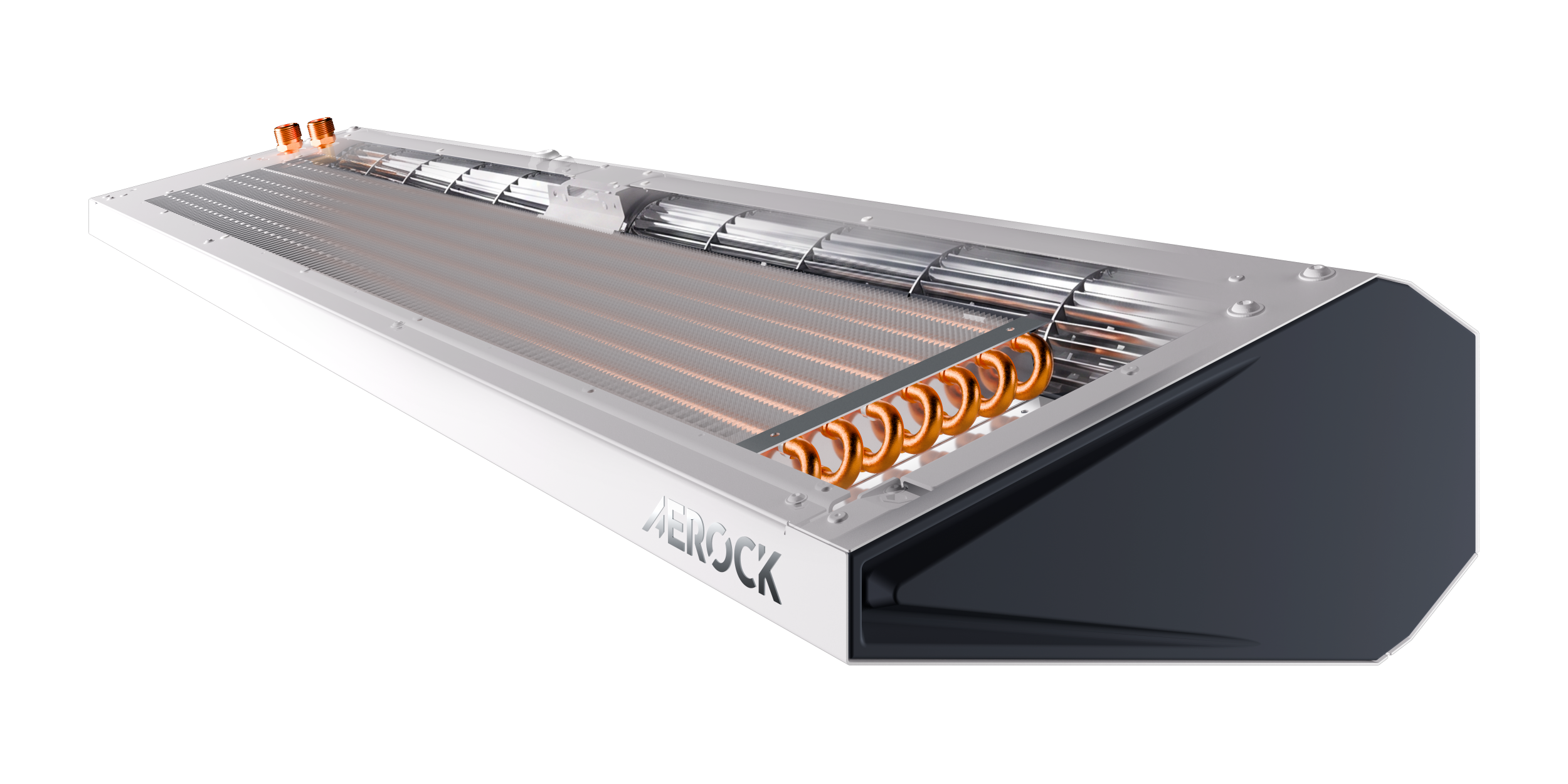

HEAT EXCHANGER
The solid exchanger frame,
copper tubes, and collectors with brass fittings guarantee trouble-free operation and
full corrosion resistance even in extreme working conditions. Additional valves in the
collectors allow the exchanger to be bled or drained, facilitating maintenance and
ensuring correct device operation for years.
INSPECTION HATCH
The hinged inspection hatch
system provides quick access to the interior of the device and the power terminal
without the need to dismantle the entire casing.
Lowering the bottom panel of the curtain allows installation, service, and maintenance work to be carried out conveniently on site.
Lowering the bottom panel of the curtain allows installation, service, and maintenance work to be carried out conveniently on site.
DUAL-ROW HEAT EXCHANGER
The dual-row heat exchanger
delivers high heating efficiency even at low supply temperatures. Its geometry ensures
low pressure drops and a high temperature rise in the blown air, while the increased
exchange surface enables effective cooperation with heat pumps and condensing boilers.
AVAILABLE MODELS
AEROCK AIR W100 AC
AEROCK AIR W150 AC
AEROCK AIR W200 AC
AEROCK AIR E100 AC
AEROCK AIR E150 AC
AEROCK AIR E200 AC
AEROCK AIR C100 AC
AEROCK AIR C150 AC
AEROCK AIR C200 AC
AEROCK AIR W100 AC
TECHNICAL SPECIFICATIONS
| Fan Speed | III max | II mid | I min |
| Fan Capacity (m3/h) | 1050 | 870 | 700 |
| Noise Level (dB/A) | 54 | 49 | 44 |
| Current Draw (A) | 0,38 | 0,31 | 0,26 |
| Fan Power Consumption (W) | 78 | 63 | 54 |
| Air Jet Range (m) | 3,4 | 2,5 | 1,9 |
| Supply Voltage (V/Hz) | 1N~230/50 | ||
| Curtain Length (m) | 1,0 | ||
| Weight (kg) | 18,9 | ||
| Max. Operating Temperature (°C) | 55 | ||
| Weight with Water (kg) | 19,4 | ||
| Water Capacity of Exchanger (dm³) | 0,42 | ||
| Max. Medium Temperature (°C) | 110 | ||
| Connection Diameter / Thread | 3/4 BSP (male thread) | ||
| Max. Working Pressure (MPa) | 1,6 | ||
| Heating Output Range (kW) | 1,7 - 14 | ||
| Temperature Rise Range (°C) | 3,0 - 42,0 | ||
| IP | 20 | ||
DIMENSIONS
| Device Width (mm) | 1000 |
| Mounting Hole Spacing (mm) | 950 |
AEROCK AIR W150 AC
TECHNICAL SPECIFICATIONS
| Fan Speed | III max | II mid | I min |
| Fan Capacity (m3/h) | 1800 | 1310 | 1180 |
| Noise Level (dB/A) | 55 | 47 | 43 |
| Current Draw (A) | 0,65 | 0,53 | 0,42 |
| Fan Power Consumption (W) | 134 | 109 | 86 |
| Air Jet Range (m) | 3,4 | 2,5 | 1,9 |
| Supply Voltage (V/Hz) | 1N~230/50 | ||
| Curtain Length (m) | 1,5 | ||
| Weight (kg) | 25,4 | ||
| Max. Operating Temperature (°C) | 55 | ||
| Weight with Water (kg) | 26,2 | ||
| Water Capacity of Exchanger (dm³) | 0,69 | ||
| Max. Medium Temperature (°C) | 110 | ||
| Connection Diameter / Thread | 3/4 BSP (male thread) | ||
| Max. Working Pressure (MPa) | 1,6 | ||
| Heating Output Range (kW) | 3,2 - 25,5 | ||
| Temperature Rise Range (°C) | 4,0 - 44,0 | ||
| IP | 20 | ||
DIMENSIONS
| Device Width (mm) | 1500 |
| Mounting Hole Spacing (mm) | 1450 |
AEROCK AIR W200 AC
TECHNICAL SPECIFICATIONS
| Fan Speed | III max | II mid | I min |
| Fan Capacity (m3/h) | 2660 | 2230 | 1750 |
| Noise Level (dB/A) | 57 | 44 | 36 |
| Current Draw (A) | 0,93 | 0,77 | 0,69 |
| Fan Power Consumption (W) | 192 | 160 | 143 |
| Air Jet Range (m) | 3,4 | 2,5 | 1,9 |
| Supply Voltage (V/Hz) | 1N~230/50 | ||
| Curtain Length (m) | 2,0 | ||
| Weight (kg) | 31,7 | ||
| Max. Operating Temperature (°C) | 55 | ||
| Weight with Water (kg) | 32,8 | ||
| Water Capacity of Exchanger (dm³) | 0,97 | ||
| Max. Medium Temperature (°C) | 110 | ||
| Connection Diameter / Thread | 3/4 BSP (male thread) | ||
| Max. Working Pressure (MPa) | 1,6 | ||
| Heating Output Range (kW) | 5,8 - 38,2 | ||
| Temperature Rise Range (°C) | 4,0 - 45,0 | ||
| IP | 20 | ||
DIMENSIONS
| Device Width (mm) | 2000 |
| Mounting Hole Spacing (mm) | 1950 |
AEROCK AIR E100 AC
TECHNICAL SPECIFICATIONS
| Fan Speed | III max | II mid | I min |
| Fan Capacity (m3/h) | 1280 | 930 | 740 |
| Noise Level (dB/A) | 55 | 47 | 42 |
| Current Draw (A) | 0,42 | 0,35 | 0,31 |
| Fan Power Consumption (W) | 87 | 72 | 64 |
| Air Jet Range (m) | 3,5 | 2,7 | 2,0 |
| Supply Voltage (V/Hz) | 1N~230/50 | ||
| Curtain Length (m) | 1,0 | ||
| Weight (kg) | 18,2 | ||
| Max. Operating Temperature (°C) | 55 | ||
| Air Temperature Rise ΔT (°C) | 8,7 | ||
| Heater Current Draw 3N~400V (A) | 5 | ||
| Heater Current Draw 1N~230V (A) | 2 | ||
| IP | 20 | ||
DIMENSIONS
| Device Width (mm) | 1000 |
| Mounting Hole Spacing (mm) | 950 |
AEROCK AIR E150 AC
TECHNICAL SPECIFICATIONS
| Fan Speed | III max | II mid | I min |
| Fan Capacity (m3/h) | 2160 | 1490 | 1220 |
| Noise Level (dB/A) | 53 | 44 | 39 |
| Current Draw (A) | 0,7 | 0,58 | 0,47 |
| Fan Power Consumption (W) | 145 | 120 | 97 |
| Air Jet Range (m) | 3,5 | 2,7 | 2,0 |
| Supply Voltage (V/Hz) | 1N~230/50 | ||
| Curtain Length (m) | 1,5 | ||
| Weight (kg) | 22,6 | ||
| Max. Operating Temperature (°C) | 55 | ||
| Air Temperature Rise ΔT (°C) | 13,1 | ||
| Heater Current Draw 3N~400V (A) | 9 | ||
| Heater Current Draw 1N~230V (A) | 3 | ||
| IP | 20 | ||
DIMENSIONS
| Device Width (mm) | 1500 |
| Mounting Hole Spacing (mm) | 1450 |
AEROCK AIR E200 AC
TECHNICAL SPECIFICATIONS
| Fan Speed | III max | II mid | I min |
| Fan Capacity (m3/h) | 3000 | 2310 | 1790 |
| Noise Level (dB/A) | 56 | 42 | 41 |
| Current Draw (A) | 0,99 | 0,86 | 0,73 |
| Fan Power Consumption (W) | 205 | 178 | 151 |
| Air Jet Range (m) | 3,5 | 2,7 | 2,0 |
| Supply Voltage (V/Hz) | 1N~230/50 | ||
| Curtain Length (m) | 2,0 | ||
| Weight (kg) | 27,8 | ||
| Max. Operating Temperature (°C) | 55 | ||
| Air Temperature Rise ΔT (°C) | 17,4 | ||
| Heater Current Draw 3N~400V (A) | 12 | ||
| Heater Current Draw 1N~230V (A) | 4 | ||
| IP | 20 | ||
DIMENSIONS
| Device Width (mm) | 2000 |
| Mounting Hole Spacing (mm) | 1950 |
AEROCK AIR C100 AC
TECHNICAL SPECIFICATIONS
| Fan Speed | III max | II mid | I min |
| Fan Capacity (m3/h) | 1390 | 980 | 760 |
| Noise Level (dB/A) | 56 | 48 | 41 |
| Current Draw (A) | 0,42 | 0,35 | 0,31 |
| Fan Power Consumption (W) | 87 | 72 | 64 |
| Air Jet Range (m) | 3,7 | 2,7 | 2,1 |
| Supply Voltage (V/Hz) | 1N~230/50 | ||
| Curtain Length (m) | 1,0 | ||
| Weight (kg) | 17,2 | ||
| Max. Operating Temperature (°C) | 55 | ||
| IP | 20 | ||
DIMENSIONS
| Device Width (mm) | 1000 |
| Mounting Hole Spacing (mm) | 950 |
AEROCK AIR C150 AC
TECHNICAL SPECIFICATIONS
| Fan Speed | III max | II mid | I min |
| Fan Capacity (m3/h) | 2280 | 1550 | 1250 |
| Noise Level (dB/A) | 55 | 44 | 40 |
| Current Draw (A) | 0,7 | 0,58 | 0,47 |
| Fan Power Consumption (W) | 145 | 120 | 97 |
| Air Jet Range (m) | 3,7 | 2,7 | 2,1 |
| Supply Voltage (V/Hz) | 1N~230/50 | ||
| Curtain Length (m) | 1,5 | ||
| Weight (kg) | 21,5 | ||
| Max. Operating Temperature (°C) | 55 | ||
| IP | 20 | ||
DIMENSIONS
| Device Width (mm) | 1500 |
| Mounting Hole Spacing (mm) | 1450 |
AEROCK AIR C200 AC
TECHNICAL SPECIFICATIONS
| Fan Speed | III max | II mid | I min |
| Fan Capacity (m3/h) | 3020 | 2330 | 1800 |
| Noise Level (dB/A) | 55 | 40 | 33 |
| Current Draw (A) | 0,99 | 0,86 | 0,73 |
| Fan Power Consumption (W) | 205 | 178 | 151 |
| Air Jet Range (m) | 3,7 | 2,7 | 2,1 |
| Supply Voltage (V/Hz) | 1N~230/50 | ||
| Curtain Length (m) | 2,0 | ||
| Weight (kg) | 26,6 | ||
| Max. Operating Temperature (°C) | 55 | ||
| IP | 20 | ||
DIMENSIONS
| Device Width (mm) | 2000 |
| Mounting Hole Spacing (mm) | 1950 |
